What Is Glass Performance?

What Is Glass Performance?

When we think of "performance," cars, computers, or cameras might come to mind. But did you know that glass—a seemingly inanimate material—can also have performance metrics? Understanding glass performance involves exploring how glass meets specific functional requirements in buildings and vehicles.

Glass plays a vital role in protecting interiors from external elements like rain, wind, and extreme temperatures while ensuring transparency and maintaining structural integrity. To achieve these objectives, glass must control several factors, including:

  1. Solar Radiation (visible sunlight and artificial lighting)
  2. Temperature (cold and heat)
  3. Moisture (rain and condensation)
  4. Structural Loads (wind and seismic forces)
  5. Sound (interior and exterior noise control)

This article focuses on the first two elements—Solar Radiation and Temperature—as moisture and structural load management often involve framing and gasketing systems. Sound control will be addressed in a future article.

Understanding Glass and Solar Energy

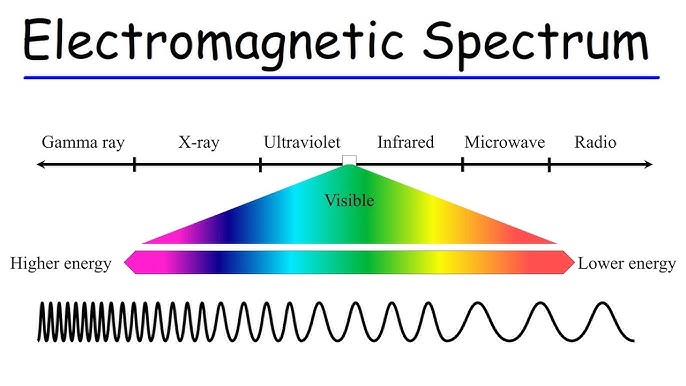

Visible light is just a small portion of the electromagnetic spectrum, ranging from 380 to 780 nanometers (nm) or 400 to 790 terahertz (THz). Glass also interacts with other wavelengths of solar energy, such as:

  • Infrared (IR): Associated with heat.
  • Ultraviolet (UV): Responsible for fading materials over time.

What Is Glass Performance?

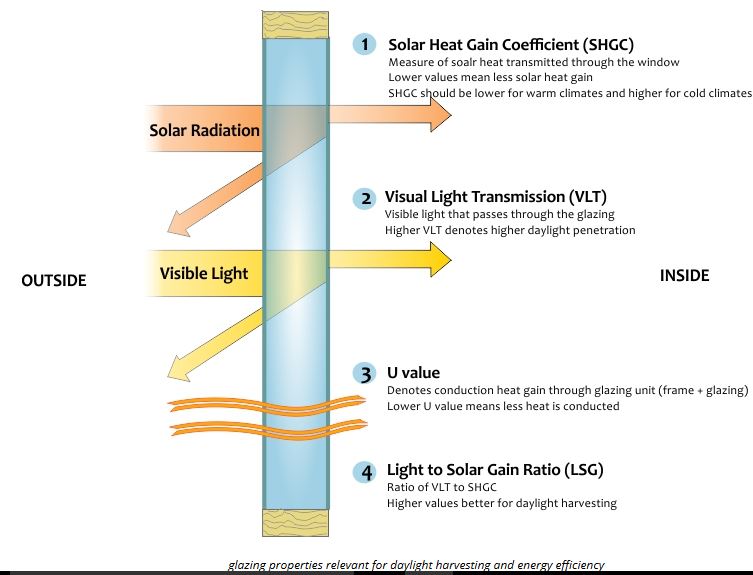

To measure how effectively glass performs, three primary metrics are used:

  1. Visible Light Transmittance (VLT): The percentage of visible light passing through glass. For example, SN68 Clear IG has a VLT of 68%, meaning it allows 68% of visible light to pass through.
  2. U-Value: A measure of heat transfer resistance. It’s expressed in units like Btu/hr·ft²·°F or W/m²·K. A lower U-value indicates better insulation and reduced heat transfer.
  3. Solar Heat Gain Coefficient (SHGC): This metric represents the total solar radiation passing through the glass, including heat absorbed and re-radiated by the glazing. For instance, SNX51/23 glass has an SHGC of 23, meaning it transmits only 23% of solar heat.

What Is Glass Performance?

Optimizing Glass Performance

The goal for most glass applications is to maximize VLT for optimal natural light while minimizing U-value and SHGC to control heat transfer and solar gain. Achieving this balance often involves:

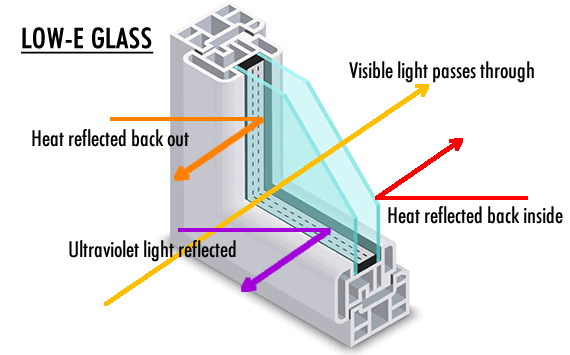

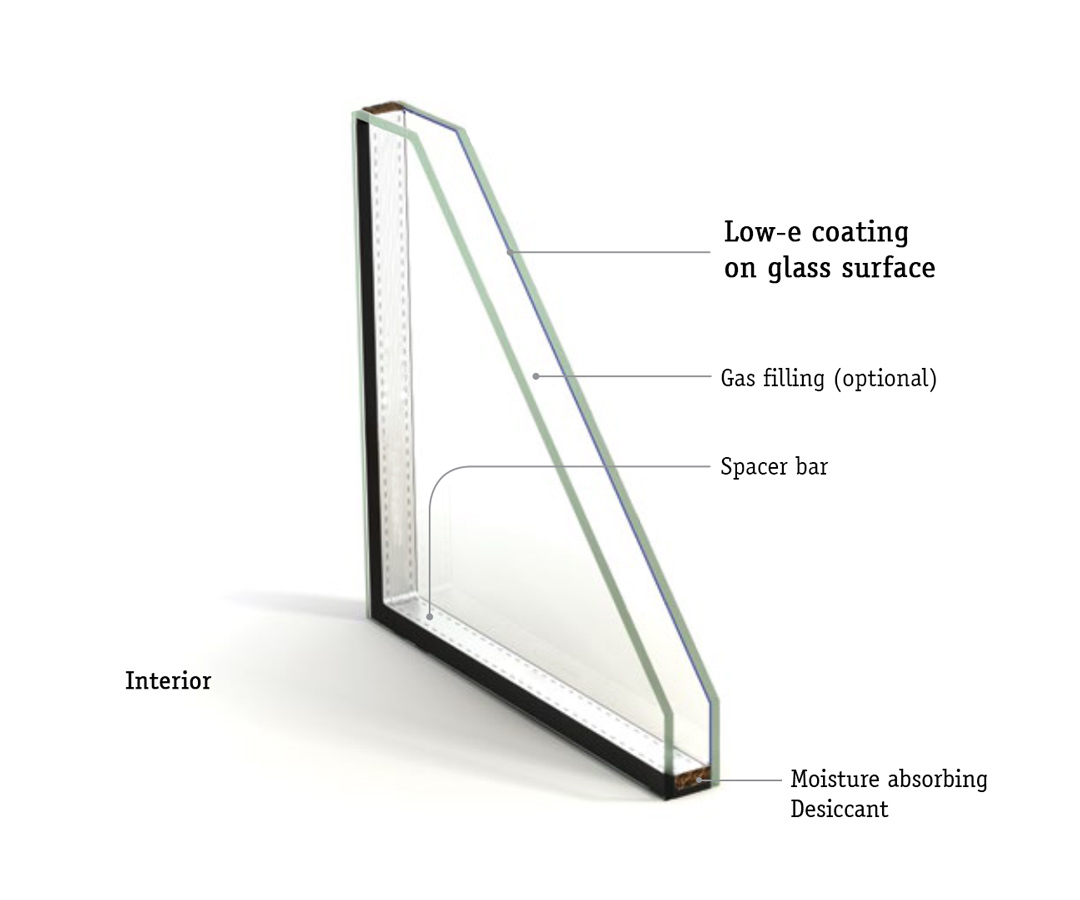

  • Coatings: Low-emissivity (low-e) coatings or reflective coatings, often made with silver, enhance energy efficiency.
What Is Glass Performance? What Is Glass Performance?

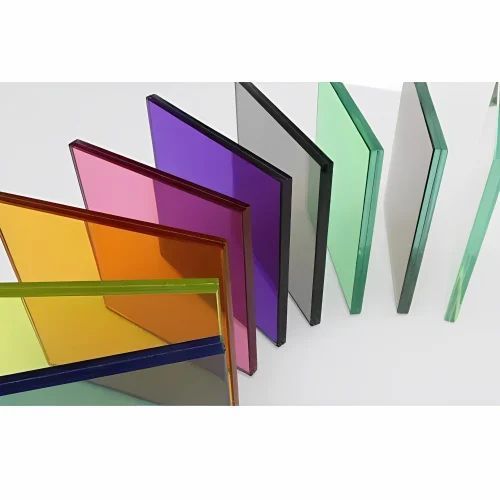

  • Substrate Tints: Glass can be tinted in shades like blue, green, grey, or bronze to modify its properties. Low-iron glass, which lacks tint, is another option for specific applications.

What Is Glass Performance?

Future Insights

Glass technology continues to evolve, offering advanced solutions for energy efficiency and environmental control. Stay tuned for upcoming articles that will dive deeper into moisture management, structural loads, and sound control.
