Self-Cleaning Smart Surfaces: Nano-Coating Solutions for Modern Architecture & Engineering

What Are Self-Cleaning Surfaces?

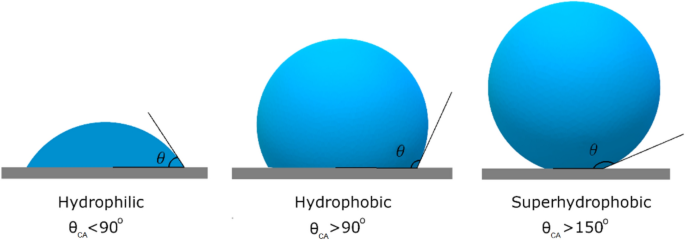

Self-cleaning surfaces are engineered coatings that either repel or actively break down contaminants. They typically fall into two categories:

• Superhydrophobic surfaces – repel water so droplets roll off, carrying dirt away (lotus effect).

• Superhydrophilic surfaces – attract water, allowing it to sheet and rinse off contaminants effectively.

Of these, superhydrophilic surfaces—often enhanced with titanium dioxide (TiO₂)—are especially promising for architectural glass, solar panels, and external cladding, due to their photocatalytic cleaning action.

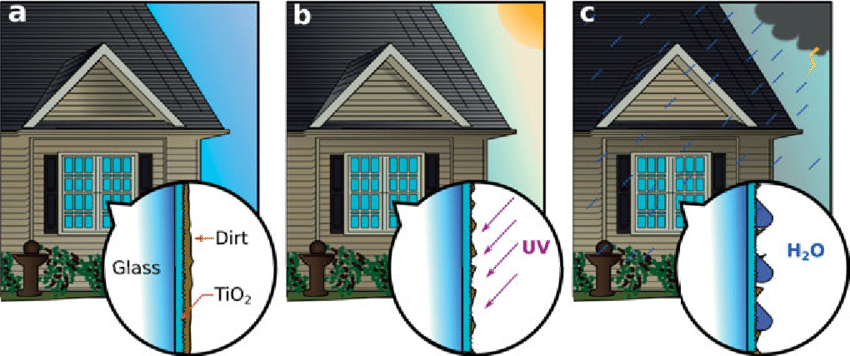

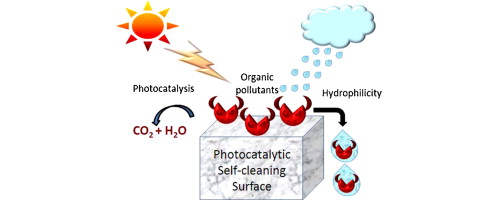

How Titanium Dioxide (TiO₂) Works on Building Surfaces

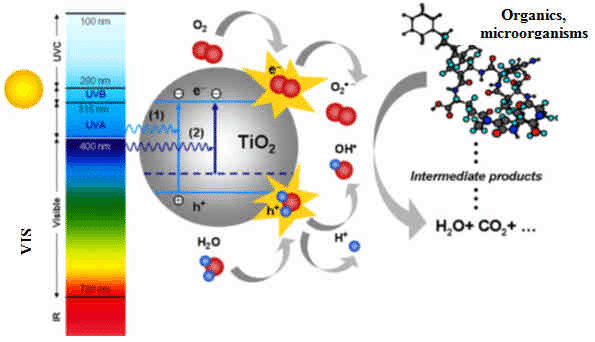

1. Photocatalysis for Active Cleaning

• When TiO₂ is exposed to sunlight, it becomes a photocatalyst.
• UV light excites electrons, triggering reactions that break down organic dirt and pollutants on the surface.
• These are then washed away easily with water or rain.

2. Superhydrophilicity for Streak-Free Rinsing

• TiO₂ coatings also modify surface energy, making the material superhydrophilic.
• Instead of beading, water spreads across the surface, lifting debris evenly without spotting or streaks.

Together, these mechanisms enable passive, continuous cleaning of external surfaces exposed to light and weather.

Applications in Architecture & Engineering

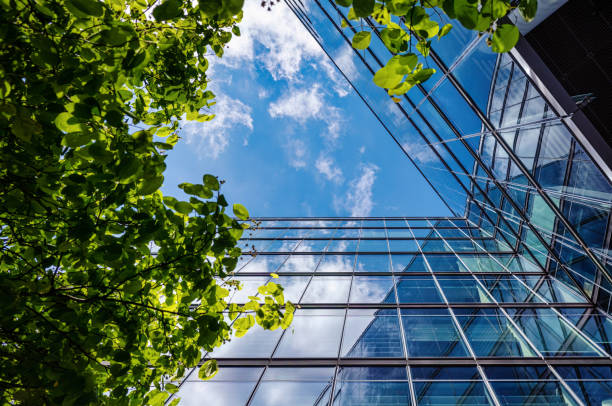

1. Glass Facades & Curtain Walls

• Self-cleaning glass keeps high-rise buildings cleaner with less maintenance.
• Improves visibility, daylighting, and building envelope performance.

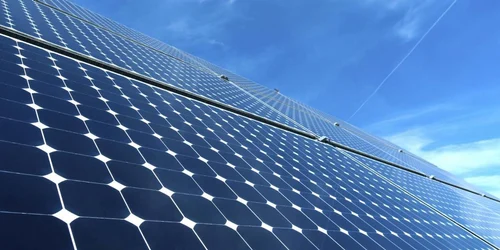

2. Solar Panels & PV Glass

• Dust and bird droppings can reduce panel efficiency by 20–30%.
• Self-cleaning coatings maintain energy output and reduce servicing costs.

3. Transportation Infrastructure

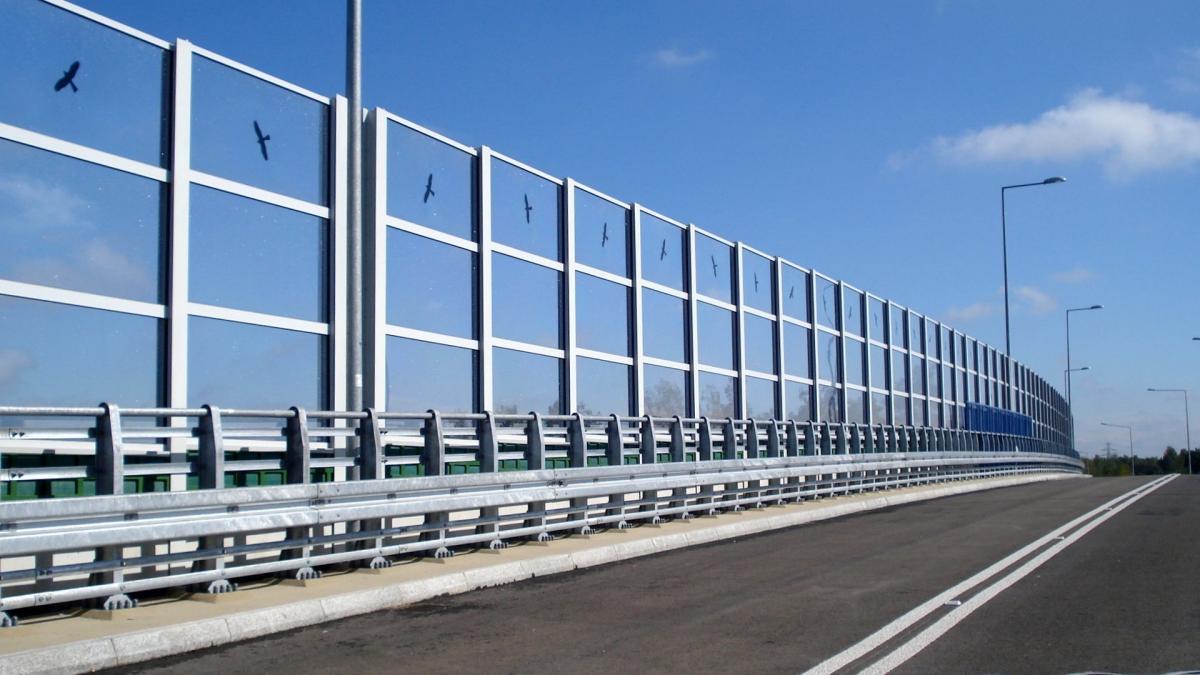

• Can be applied to sound barriers, light poles, signs, and bridges for anti-fouling and pollution resistance.

3. Cladding, Concrete & Stone

• Coatings help building materials resist pollution, mildew, and water stains.
• Ideal for heritage restoration and exposed architectural surfaces.

4. Healthcare and Public Spaces

• In high-traffic environments, self-cleaning, antimicrobial coatings enhance hygiene and reduce microbial load.

Material Performance for Built Environments

1. Durability and Compatibility

• TiO₂ coatings can be integrated into glass laminates, concrete surfaces, paint systems, and metal composites.
• They are UV-stable, non-toxic, and chemically resistant, ensuring long-term performance under environmental stressors.

2. Enhanced Formulations for Real-World Use

Researchers have developed improved TiO₂ systems to work under visible light—not just UV—using:

• Metal/non-metal doping
• Graphene-TiO₂ composites
• Heterojunctions with other semiconductors
• Dye sensitization for extended light absorption

These innovations ensure coatings remain effective even in shaded or indoor conditions.

Fabrication Techniques Relevant to Architecture

• Sol-Gel Coating – low-cost, scalable application for glass and ceramics.
• Spray Coating / PVD – ideal for metal panels and large-surface treatments.
• Lamination Integration – for factory-applied smart glass systems.
• Laser Texturing – to create micro/nanostructures enhancing capillarity and wetting performance.

These methods allow integration into both new builds and retrofits, depending on the application needs.

Sustainable Design & Lifecycle Value

From a sustainability standpoint, self-cleaning surfaces offer significant benefits:

• Reduced water usage – minimizes manual washing and chemical detergents.
• Lower maintenance costs – especially valuable for tall buildings and inaccessible structures.
• Extended material life – by resisting pollution, corrosion, and organic decay.
• Improved occupant well-being – through cleaner facades, improved light transmission, and antibacterial properties.

Conclusion: Engineering the Next Generation of Smart Surfaces

For architects and engineers, incorporating photoactive self-cleaning coatings into your design toolkit means future-proofing buildings for low maintenance, environmental resilience, and long-term performance. Whether you're specifying glazing for a LEED-certified tower or developing infrastructure in a polluted urban zone, these coatings offer a practical and science-backed path to cleaner, smarter environments.

Sources: Sciencedirect
