Ceramics: Types, Properties, and Industrial Applications

Ceramics, a diverse class of inorganic, non-metallic materials, are celebrated for their unique combination of properties that set them apart from metals and polymers. With a history rooted in ancient craftsmanship and an evolving role in advanced engineering, ceramics are a cornerstone of both tradition and modern innovation. This guide explores the technical aspects of ceramics, their types, and applications, making it a must-read for industry professionals, researchers, and enthusiasts alike.

What Are Ceramics?

The term "ceramics" originates from the Greek word keramos, meaning "potter's clay." Today, ceramics encompass a broad spectrum of materials ranging from traditional pottery to high-performance engineering ceramics. Formed by mixing clay, earthy materials, and water, ceramics are shaped and heated at high temperatures to achieve their characteristic hardness, durability, and resistance to heat and chemicals.

Ceramics Types, Properties, and Industrial Applications

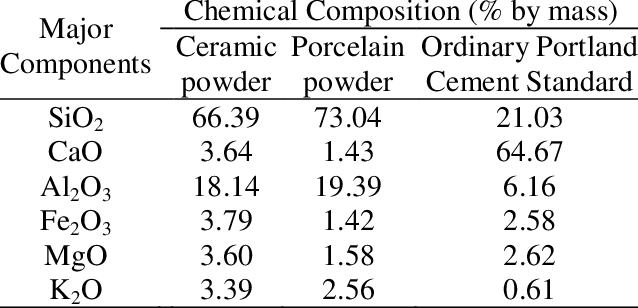

Key Ingredients of Ceramics:

  • Clay and Silicates: Serve as the base materials, offering workability and thermal stability.
  • Metal Oxides: Aluminum oxide (alumina), zirconium dioxide (zirconia), and titanium dioxide enhance strength and temperature resistance.
  • Non-Oxides: Carbides, nitrides, and borides contribute to advanced ceramics' toughness and wear resistance.

Ceramics Types, Properties, and Industrial Applications

Properties of Ceramics

  1. High Hardness and Strength: Ceramics boast exceptional compressive strength and hardness, making them ideal for load-bearing applications.
  2. Thermal Stability: With low thermal conductivity and high melting points, ceramics excel in high-temperature environments.
  3. Electrical Insulation: Most ceramics are excellent electrical insulators, critical in electronics manufacturing.
  4. Chemical Resistance: Their inherent stability ensures resistance to corrosion and chemical wear.
  5. Low Density: Lightweight ceramics find extensive use in aerospace and automotive sectors.

Challenges:

While ceramics are celebrated for their strength and durability, their brittleness and low tensile strength can limit their applications in dynamic environments. Advanced processing methods are often required to overcome these challenges.

Types of Ceramics

Traditional Ceramics:

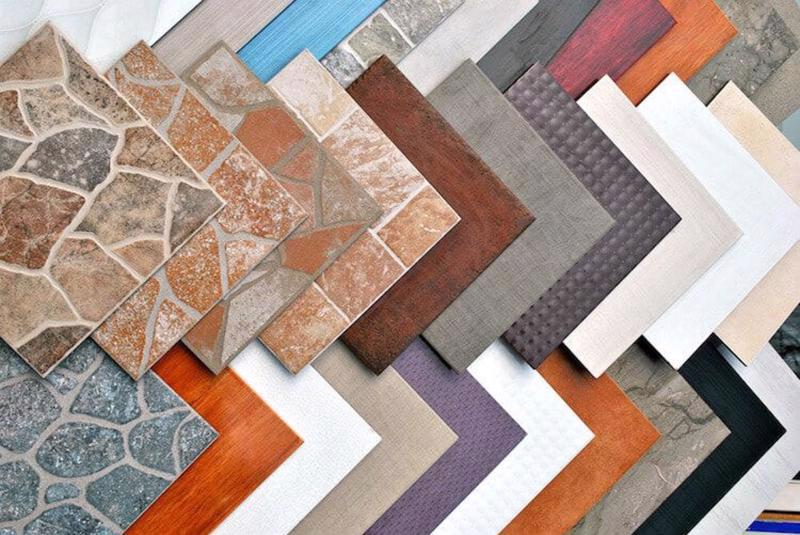

These include earthenware, porcelain, and vitrified tiles. Commonly made from clay minerals, feldspar, and silica, traditional ceramics are widely used in construction, pottery, and household items.

Ceramics Types, Properties, and Industrial Applications Ceramics Types, Properties, and Industrial Applications

Advanced Ceramics:

Engineered for specific applications, these materials exhibit enhanced properties:

  • Alumina: Known for its high hardness and electrical insulation, used in bearings and spark plugs.
  • Zirconia: With excellent toughness and wear resistance, it is vital in medical implants and cutting tools.
  • Silicon Carbide: A semiconductor material with high thermal and chemical resistance, ideal for power electronics and abrasives.
  • Silicon Nitride: Resilient to thermal shock, used in aerospace and automotive engine components.

Ceramics Types, Properties, and Industrial Applications

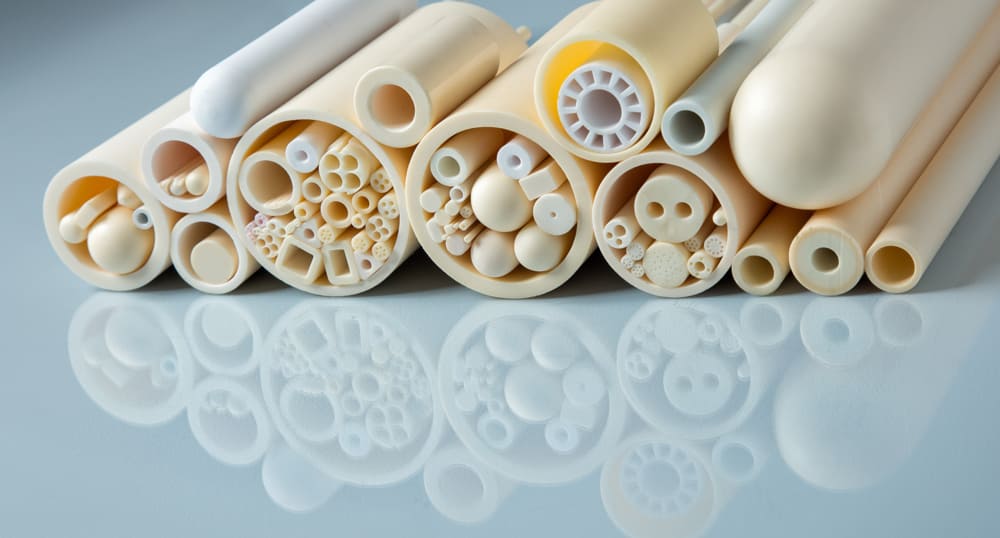

Alumina

Ceramics Types, Properties, and Industrial Applications

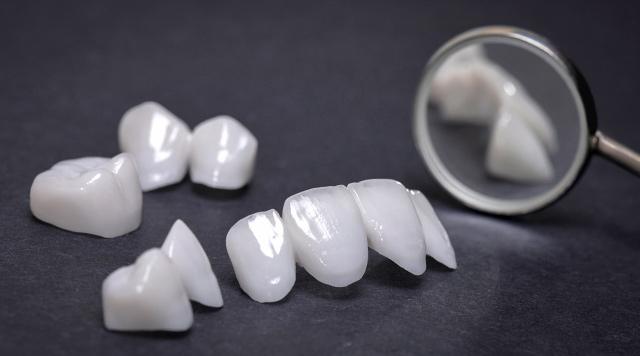

Zirconia

Ceramics Types, Properties, and Industrial Applications

Silicon Carbide

Ceramics Types, Properties, and Industrial Applications

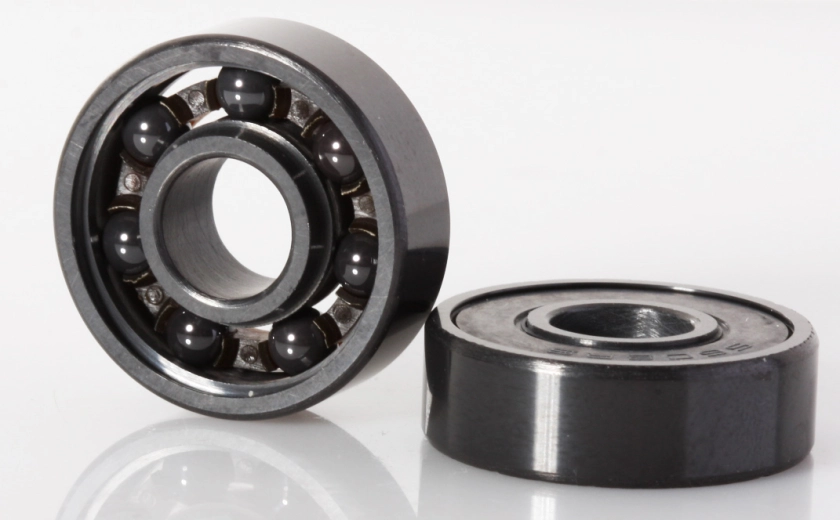

Silicon Nitride

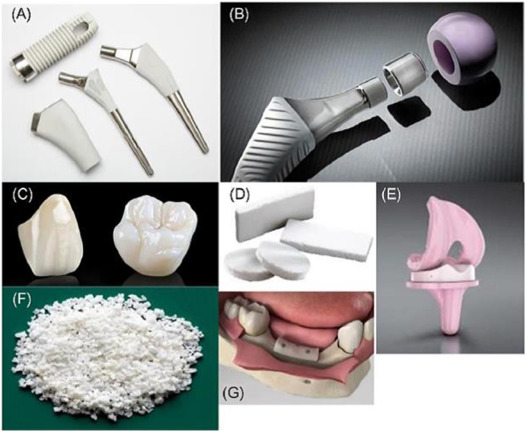

Bioceramics:

These materials, such as hydroxyapatite and zirconia, are used in medical implants and tissue engineering due to their biocompatibility and non-toxic properties.

Ceramics Types, Properties, and Industrial Applications

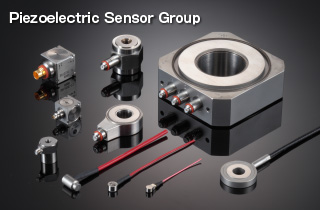

Piezoelectric Ceramics:

Specialized ceramics like lead zirconate titanate (PZT) are used in sensors, actuators, and ultrasonic devices for their ability to convert mechanical stress into electrical signals.

Ceramics Types, Properties, and Industrial Applications

Applications of Ceramics

  1. Electronics: Insulating substrates, capacitors, and piezoelectric devices.
  2. Automotive: Engine components, spark plugs, and wear-resistant coatings.
  3. Aerospace: Heat shields, lightweight engine parts, and missile nose cones.
  4. Medical: Orthopedic implants, dental crowns, and biocompatible prostheses.
  5. Construction: Tiles, bricks, and sanitaryware for strength and aesthetic appeal.
  6. Energy Sector: Ceramic membranes in fuel cells, thermal barrier coatings, and insulators in power transmission.

ISO Standards for Ceramics

The International Organization for Standardization (ISO) has developed specific standards under the ICS 81.060 series to ensure the quality and consistency of ceramics in various industries. These include testing methods, raw material standards, and advanced ceramic classifications, catering to both traditional and high-tech applications.

Advantages of Ceramics

  • Durability: Resistant to wear, corrosion, and extreme temperatures.
  • Environmental Friendliness: Inert and non-toxic, ideal for green engineering solutions.
  • Aesthetic Flexibility: Available in various finishes for decorative and functional uses.

Limitations of Ceramics

  • Brittleness: Susceptible to fracture under high stress.
  • Processing Complexity: Requires precise methods like sintering and hot pressing.
  • Thermal Shock Sensitivity: Vulnerable to sudden temperature changes.

By integrating advanced materials and innovative techniques, ceramics continue to revolutionize industries ranging from healthcare to aerospace. Their versatility and reliability make them indispensable, promising a future of sustainable and efficient applications.
